HRMS Agent: A Permission-Aware Conversational AI Layer for HRMS Self-Service

Executive Summary

Employees at organizations running the HRMS (Human Resource Management System) platform previously had to navigate multi-step UI forms to complete routine tasks such as checking leave balances, applying for leave, or reviewing team attendance. HRMS Agent replaces that friction with a natural-language chat interface layered directly on top of the existing HRMS backend, allowing employees to accomplish the same tasks by simply describing what they want.

The solution is built as a standalone FastAPI service that orchestrates a LangChain/LangGraph tool-calling agent backed by Anthropic’s Claude models. Rather than replacing HRMS, HRMS Agent acts as a conversational front door: it authenticates against the existing HRMS login system, inherits the user’s exact permission set from HRMS, and executes actions through a permission-gated tool layer that calls the HRMS REST API on the user’s behalf. All HR data continues to live exclusively in HRMS’s MySQL database — HRMS Agent stores only conversational and operational metadata (sessions, capabilities, chat history, audit logs) in its own PostgreSQL schema.

Technically, the system combines FastAPI (async web/WebSocket framework), LangGraph (explicit state-machine modeling of the tool-calling loop), httpx (async HTTP client), and Anthropic Claude (Haiku by default, Sonnet for higher-accuracy scenarios) with Pydantic v2 for validation. Security-sensitive design choices — fail-closed authorization, server-generated session tokens, mutation confirmation gates, async audit logging, and tenant isolation — reflect the reality that this agent operates against sensitive HR data on behalf of individually-permissioned users.

Strategically, the architecture was deliberately built for extensibility: new HR domains (payroll, appraisal, attendance) can be added as independent, permission-gated tool groups without altering the core orchestration logic, and the same codebase can run against different database backends (MySQL in development, PostgreSQL tenant schemas in production) via a single environment flag — positioning HRMS Agent as a reusable conversational layer rather than a one-off integration.

Business Challenge

Objectives

Solution Overview

What was built: HRMS Agent is a FastAPI-based conversational AI service (“hrms_agent”) that sits between end users and the existing HRMS Django REST API. It exposes both a WebSocket endpoint (/ws) and REST endpoints (/api/v1/login, /logout, /session, /auth/sso, /chat) for chat interactions, authentication, and session management.

How users interact with it: Employees converse with the agent through a web chat UI (browser-based, served from index.html) or through the existing Angular HRMS frontend, which can embed the chat experience as a widget using an SSO flow (iframe + postMessage) that reuses the user’s existing HRMS login — no second authentication step required.

Core architecture approach: The system follows a three-tier conversational AI architecture:

  1. Client Layer — the web chat UI and the optional Angular frontend.
  2. HRMS Agent Server — the FastAPI application containing the WebSocket/REST handlers, the OrchestratorAgent, the permission-gating layer, the tool layer, and the ChatStore persistence layer.
  3. External Services — the HRMS Django REST backend and the Anthropic Claude API.

Major capabilities:

Key Features

Feature Description Benefit
Natural language HR assistant Employees ask for leave balances, apply for leave, and check team attendance in plain language Removes the need to learn or navigate complex HRMS UI forms
LangGraph tool-calling agent loop Explicit StateGraph with nodes call_model → execute_tools → finish/force_final, capped at 4 rounds Makes the reasoning/tool-execution loop predictable, testable, and boundable
Hallucination self-correction Detects JSON tool calls emitted as plain text and retries without prompt cache Reduces incorrect or unexecuted actions caused by model output errors
Permission-based tool gating Tools are assembled per user at login using exact alias matching against the HRMS permission tree Ensures the LLM can never see or call a tool the user isn’t authorized to use
Fail-closed authorization Login is blocked if the HRMS permission-list endpoint fails, with no role fallback Prevents privilege escalation through guessed or default roles
Mutation confirmation gate Every state-changing tool (apply/cancel leave, approvals, regularization) shows the payload and waits for explicit user confirmation Protects HR data integrity from accidental or misinterpreted actions
Async mutation audit trail Every mutating tool call is logged to hrms_audit_log without blocking the chat response Provides compliance-grade traceability without latency cost
Rate limiting Sliding-window limiter, keyed by session for chat and by client IP for login/SSO Mitigates abuse and brute-force login attempts
Secure session handling Server-generated secrets.token_urlsafe(32) token stored only in an HttpOnly; SameSite=lax cookie, 8-hour TTL Eliminates token leakage via URLs, logs, or client-side scripts
Tenant isolation DB_TENANT read from server-side .env, never from request input, stamped on every log row Prevents cross-tenant data exposure (IDOR)
SSO / Angular widget integration POST /api/v1/auth/sso validates an HRMS-issued JWT and creates a session via iframe + postMessage Lets the chat widget embed in the existing Angular app with no re-login
Prompt caching Anthropic prompt caching applied to the static system prompt Reduces input token cost by roughly 90% on cached turns
Stateless agent OrchestratorAgent rebuilt per request from PostgreSQL session state Enables horizontal scaling with no in-memory state to synchronize

Architecture Overview

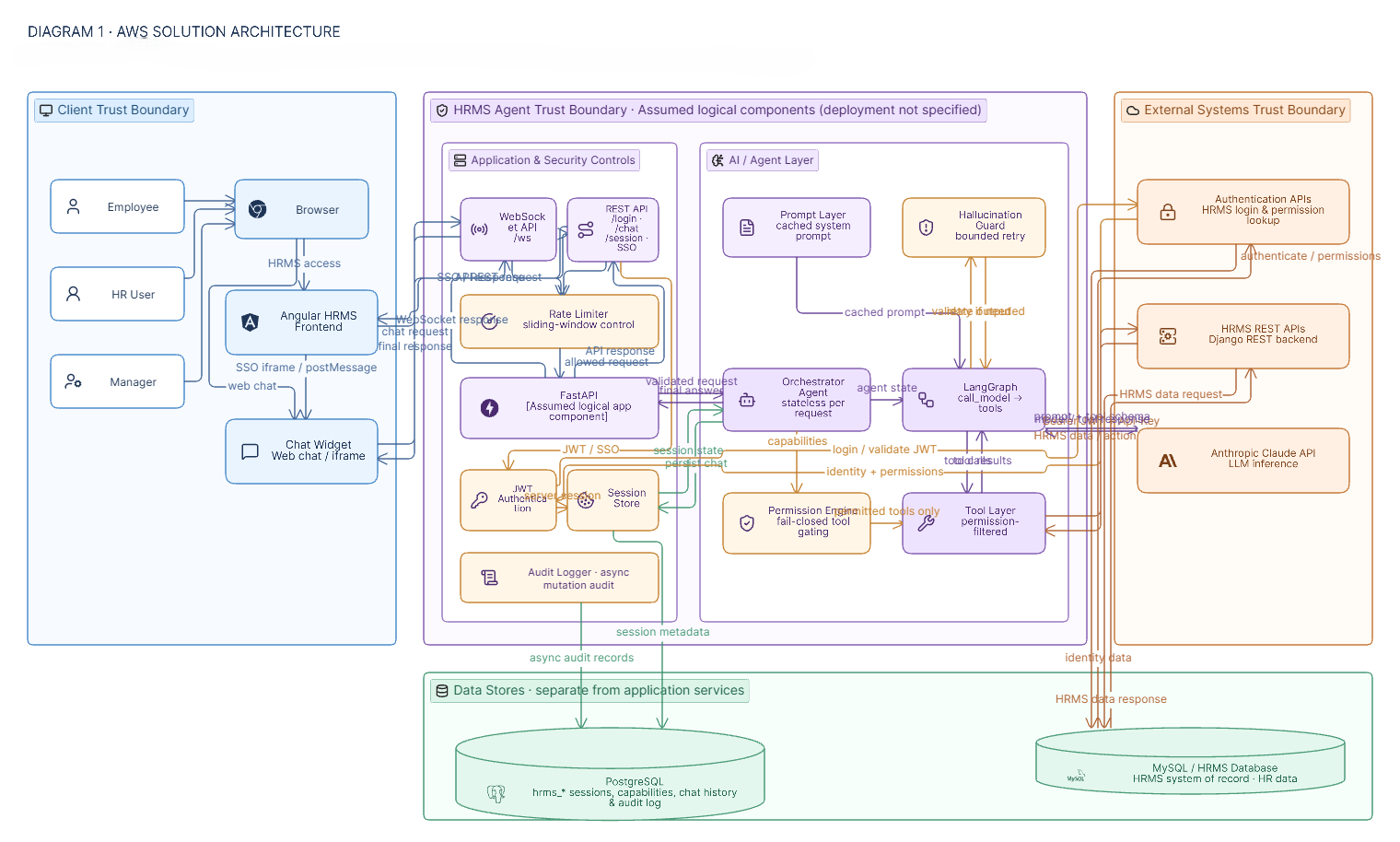

AWS-Style HRMS Agent Solution Architecture

Architecture Diagram

graph TD
    subgraph "User Interface"
        UI["Web Chat UI"]
        ANGFE["Angular Frontend (optional widget)"]
    end

    subgraph "API Layer - FastAPI"
        WS["WebSocket Handler /ws"]
        REST["REST Endpoints /login /session /auth/sso /chat"]
        RL["Rate Limiter Middleware"]
    end

    subgraph "AI/Agent Layer"
        ORCH["OrchestratorAgent"]
        GRAPH["LangGraph StateGraph\ncall_model -> execute_tools -> finish"]
        HAL["Hallucination Guardrails"]
    end

    subgraph "Tool Layer"
        GATE["Permission Gating\n(auth/permissions.py)"]
        TOOLS["build_*_tools()\nper HR domain"]
    end

    subgraph "Data Layer"
        STORE["ChatStore\nPostgreSQL hrms_* tables"]
        QUEUE["Async Log Queue\n(0.5s drain)"]
        AUDIT["Audit Logger\nhrms_audit_log"]
    end

    subgraph "External Systems"
        HRMSB["HRMS Backend\nDjango REST API"]
        MYSQL[("MySQL\nHRMS data")]
        ANT["Anthropic Claude API"]
    end

    UI -->|"WebSocket"| WS
    ANGFE -->|"HTTP / SSO"| REST
    WS --> RL
    REST --> RL
    RL --> ORCH
    ORCH --> GRAPH
    GRAPH --> HAL
    GRAPH -->|"bind_tools + ainvoke"| ANT
    ORCH --> GATE --> TOOLS
    TOOLS -->|"Bearer JWT + Api-Key"| HRMSB
    HRMSB --> MYSQL
    ORCH --> STORE
    STORE --> QUEUE
    GRAPH -.->|"mutation executed"| AUDIT

User Journey

  1. The user authenticates — either directly via HRMS credentials (/user/login/) or via SSO, where the Angular frontend passes an existing HRMS JWT to POST /api/v1/auth/sso.
  2. HRMS Agent fetches the user’s full permission tree from HRMS (/users/auth_user_all_permission_list/); if this call fails, login is blocked entirely (fail-closed).
  3. A server-generated session token (secrets.token_urlsafe(32)) is issued in an HttpOnly; SameSite=lax cookie, and the user’s capabilities are stored as JSON in PostgreSQL.
  4. The user sends a message (e.g., “What is my leave balance?”) over WebSocket or REST.
  5. The OrchestratorAgent loads session state (JWT, capabilities, recent history) from ChatStore and assembles the permission-filtered tool set for this user.
  6. The agent invokes Claude with the cached system prompt, conversation history, and the new message.
  7. If Claude responds with a tool call, the corresponding tool executes against the HRMS REST API using the user’s Bearer JWT and the service’s Api-Key header (up to 4 rounds of tool calling).
  8. For any state-changing action (e.g., applying for leave), the agent presents the exact payload and waits for explicit user confirmation before executing it.
  9. Tool results are fed back to Claude, which produces a final natural-language response.
  10. The conversation turn is saved synchronously to ChatStore; LLM usage and (for mutations) audit records are queued for asynchronous, non-blocking persistence.
  11. The response is returned to the user over the same WebSocket or REST channel.

Technical Deep Dive

Frontend

A browser-based web chat UI (index.html) communicates with the agent primarily over WebSocket. Optionally, the existing Angular HRMS frontend embeds the same chat experience as a widget, integrated via an SSO flow using an iframe and postMessage, so the user’s existing Angular session carries over without a second login.

Backend

The service is built on FastAPI for its native async and WebSocket support, served by uvicorn. Routes are deliberately split by concern (admin.py, auth.py, chat.py, ws.py) rather than kept in a single file, and all request/response data is validated with Pydantic v2. All outbound calls to HRMS use httpx.AsyncClient, keeping the entire request path non-blocking.

AI Orchestration

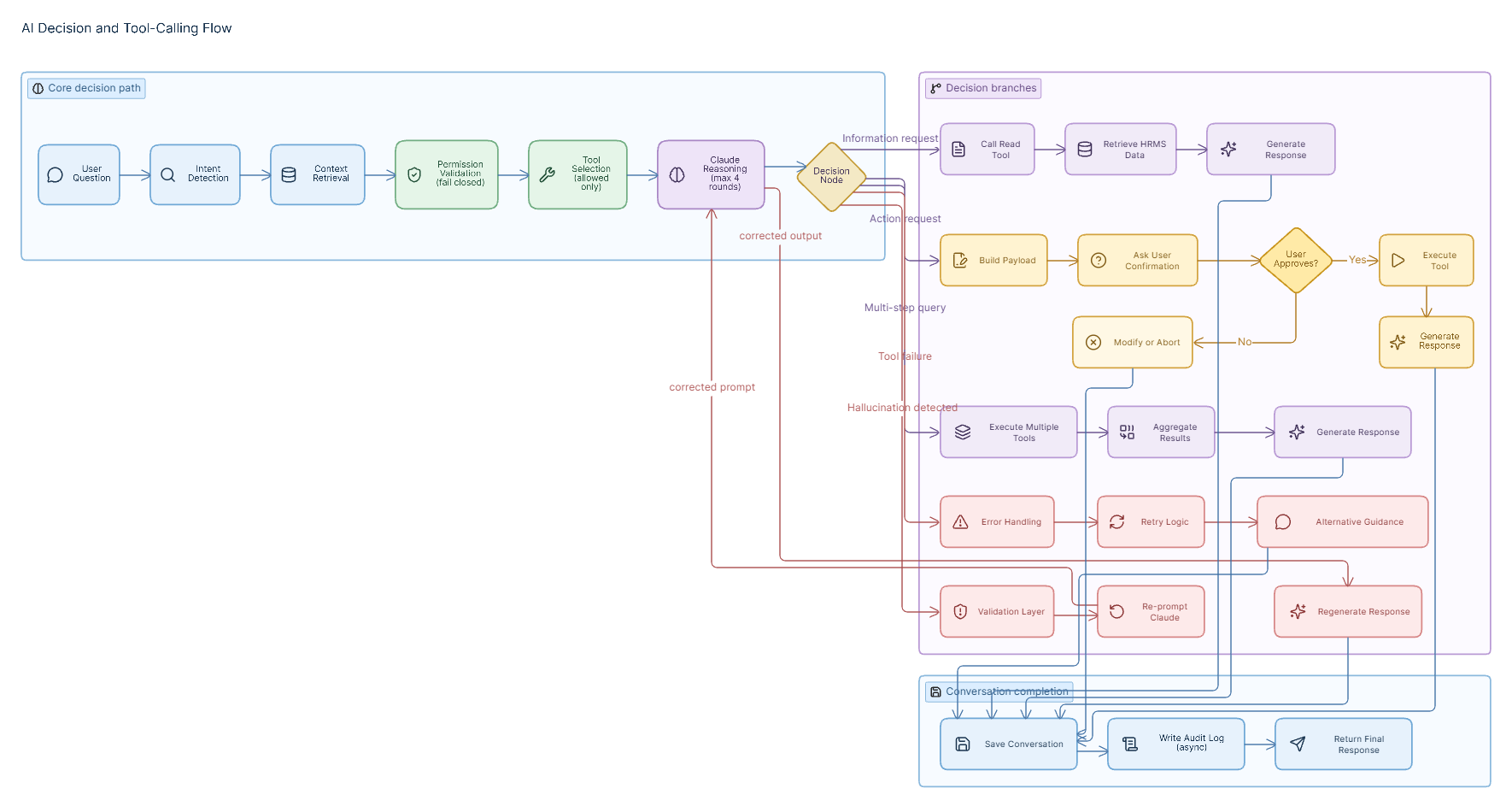

AI Decision and Tool-Calling Flow

The core reasoning loop is implemented with LangChain and LangGraph. Rather than a hand-written loop, the tool-calling cycle is modeled as an explicit StateGraph (agents/graph.py) with nodes call_model → execute_tools → finish/force_final, bounded to 4 rounds. A dedicated hallucination-detection module (hallucination.py) checks for tool calls that the model emitted as plain text instead of a structured call, and triggers a bounded retry (without prompt cache) when this is detected. The static system prompt is cached via Anthropic’s prompt caching API, cutting input token cost by roughly 90% on cached turns. The agent itself is stateless — it is rebuilt from PostgreSQL session state on every request, which is what allows the service to scale horizontally.

Integrations

Data Persistence

HRMS Agent deliberately separates two categories of data:

  1. hrms_* log tables (sessions, capabilities, chat messages, LLM usage, audit records) — always written via hrms_db.py, routed to either PostgreSQL or MySQL by the DB_BACKEND flag, and always tenant-stamped.
  2. HRMS data — accessed primarily through the HRMS REST API; a separate raw-SQL escape hatch (tools/db_client.py) exists for complex queries not covered by the API, hitting MySQL in development or a PostgreSQL tenant schema in production.

Chat messages and session state are written synchronously for consistency; observational data (LLM usage, audit logs) is queued and drained every 0.5 seconds via batched execute_many inserts, so logging never adds latency to a chat response.

Security

Security is treated as foundational rather than additive, given that the agent acts on sensitive HR data on a per-user, permission-scoped basis. Authentication is fully delegated to HRMS — HRMS Agent never stores passwords. Authorization is fail-closed: if the HRMS permission endpoint fails or returns no data, login is blocked outright rather than falling back to a guessed role. Every tool exposed to the LLM is filtered per user from a capability set loaded fresh from PostgreSQL on each turn — unauthorized tools simply do not exist in that session’s context.

Data Flow

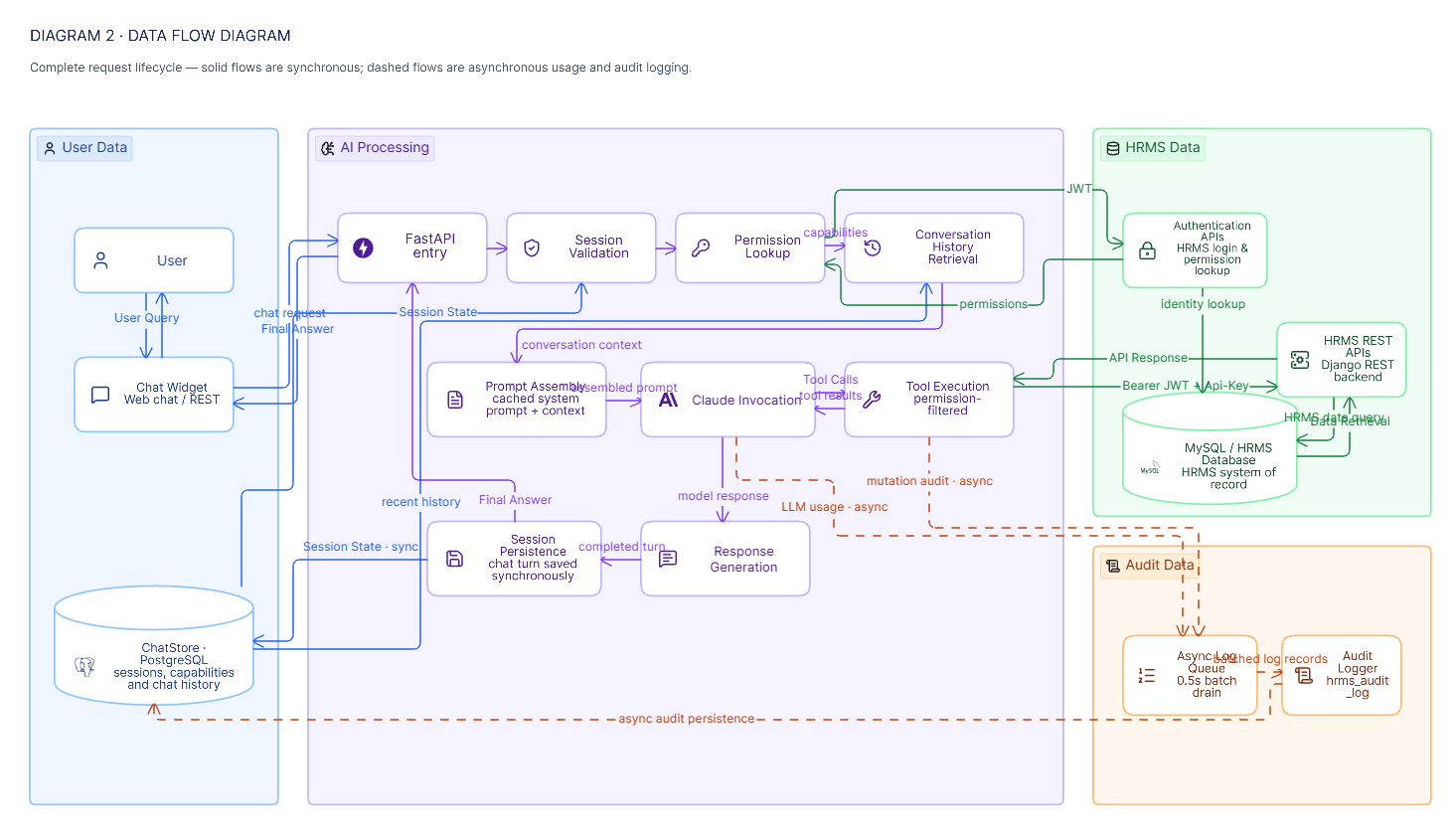

Request Lifecycle Data Flow

1. Request Processing

An incoming chat message (WebSocket or REST) passes through the rate-limiting middleware, then the OrchestratorAgent loads the session’s JWT, permission capabilities, and recent conversation history from ChatStore.

2. Tool Execution

Claude is invoked with the cached system prompt, history, and the new message. If it returns tool calls, each is executed via the permission-filtered tool set against the HRMS REST API (Bearer JWT + Api-Key header), for up to 4 rounds. State-changing tools require an explicit user confirmation before execution.

3. Response Generation

Tool results are returned to Claude as ToolMessages, and the model produces a final natural-language response, or issues further tool calls within the round limit.

4. Logging / Auditing

The completed turn (user + assistant messages) is saved synchronously to PostgreSQL. LLM usage metrics are pushed to the async log queue. If a mutation tool was executed, an audit record is queued to hrms_audit_log — this write is asynchronous and a logging failure never blocks the chat response.

flowchart TD
    A["User: apply leave June 10-12"] --> B["Tool: get_leave_balance"]
    B --> C["Tool: get_leave_types"]
    C --> D{"All required fields collected?"}
    D -- No --> E["LLM asks for missing info"]
    E --> D
    D -- Yes --> F["LLM shows JSON payload for confirmation"]
    F --> G{"User confirms?"}
    G -- No / Modify --> H["Abort or re-collect"]
    G -- Yes --> I["Tool: apply_leave(payload)"]
    I --> J["POST /attendance/apply_advance_leaves/"]
    J --> K{"request_status == 1?"}
    K -- Yes --> L["Leave submitted - confirmation message"]
    K -- No --> M["Show error detail - suggest next steps"]

Security & Governance

Security Aspect Implementation
Authentication Delegated entirely to HRMS /user/login/
Session token secrets.token_urlsafe(32), server-generated, never client-supplied
Session cookie HttpOnly; SameSite=lax; Secure (on HTTPS)
Session expiry 8-hour TTL via expires_at column
Permission fetch Called at every login; fail-closed if it fails or returns None
Per-user tool set Only permitted tools bound to the LLM per session
JWT storage Server-side PostgreSQL only, never sent to the browser
SSO validation JWT validated against HRMS get_user_permissions(); user_id cross-checked against JWT claim
Encryption bypass Internal Api-Key header bypasses HRMS payload encryption for trusted service-to-service calls
LLM guardrail System prompt explicitly forbids exposing JWT tokens
CORS Permissive (*) — This is suitable for internal/intranet deployment only
Tenant isolation DB_TENANT sourced from .env, never from request input
Rate limiting Sliding-window, session-keyed (chat) and IP-keyed (login/SSO)
Mutation audit trail Async logging of all MUTATION_TOOLS calls to hrms_audit_log
SSO localStorage decryption AES-256-CBC decryption of Angular’s encrypted blobs performed server-side; shared secret never reaches the browser

Technology Stack

Layer Technology Purpose
Web framework FastAPI Async request handling and native WebSocket support
ASGI server uvicorn Application server (reload=True in dev)
AI framework LangChain + LangGraph Agentic tool-calling loop implemented as a StateGraph
LLM provider Anthropic Claude (ChatAnthropic) Claude Haiku 4.5 by default; Sonnet for higher accuracy
HTTP client httpx (async) Non-blocking calls to the HRMS REST API
Log storage PostgreSQL or MySQL via hrms_db.py Chat sessions, messages, LLM usage, and audit data, tenant-stamped
HRMS data queries PyMySQL (dev) / PostgreSQL (prod) Raw-SQL escape hatch for queries not covered by the REST API
Data validation Pydantic v2 Request/response schema validation
Runtime Python 3.12 (conda env hrmsagent) Application runtime
Configuration python-dotenv .env-based environment configuration

Key Design Decisions

Decision Choice Reasoning
LLM provider Anthropic Claude Reliable tool-calling, prompt caching support, consistent output quality
Tool-calling loop LangGraph StateGraph Explicit node graph makes the hallucination retry loop and per-round token accounting easy to test and reason about; superseded an earlier hand-written while-loop, which was A/B toggled and later removed once LangGraph was fully adopted
Authorization data Static auth/permission_map.py file Separates permission data from logic, so non-engineers can extend mappings without touching code
Fail-closed permissions Login blocked on permission fetch failure, no role fallback A multi-user HRMS with individually assigned permissions cannot be safely approximated by a guessed role
Session token Server-generated secrets.token_urlsafe(32) in an HttpOnly cookie Client-generated UUIDs were previously exposed in WebSocket URLs (server logs) and localStorage (XSS-readable)
Session expiry 8-hour TTL via expires_at column Prevents indefinitely-living sessions after a browser is closed without logging out
Session storage PostgreSQL public schema via hrms_db.py Dedicated log database, separate from HRMS data, with a pooled connection (2–10) reused across requests
SSO integration POST /api/v1/auth/sso + iframe postMessage Keeps the existing static login form unchanged; SSO is purely additive
HTTP client Async httpx Non-blocking, pairs naturally with FastAPI’s async model
Direct DB access Two separate connections — hrms_db.py for logs, tools/db_client.py for HRMS raw-SQL escape hatches Clean separation of concerns between log storage and HRMS data access
Async write queue asyncio.Queue + background drain task Observational logging (usage, audit, eval) must not add latency to chat responses
Tenant column vs. separate tables Single tenant VARCHAR(64) column on all log tables Enables single-place superadmin reporting without table-per-tenant proliferation
DB_BACKEND switch Env-driven mysql / postgres routing Same codebase deployed with different .env configuration across dev and production
Stateless agent Rebuilt from PostgreSQL session state per request Enables horizontal scaling with no in-memory state leaks between requests
Mutation confirmation Payload shown before every mutating action Prevents accidental mutations; critical for HR data integrity
Closure-based tools build_*_tools(client, caps) pattern Each session gets its own JWT-bound, permission-filtered tool set, avoiding global mutable state
HRMSClient packaging tools/hrms_client/ split into domain mixins Each HR domain (leave, attendance, team, HR) is independently editable
Enum centralization Single tools/hrms_enums.py source of truth Backend model choices defined once and imported rather than hardcoded per tool file

Scalability & Reliability

Challenges & Mitigations

Challenge Mitigation
LLM occasionally emits tool calls as plain text instead of structured calls hallucination.py detects this pattern and triggers a bounded retry without prompt cache
Accidental or misinterpreted mutations to HR data (leave, approvals, regularization) Every mutating tool requires the exact payload be shown and explicitly confirmed by the user before execution
HRMS permissions are individual, not role-based, making broad role assumptions unsafe Fail-closed authorization: login is blocked outright if the permission-list fetch fails
Risk of cross-tenant data exposure (IDOR) in a shared log schema DB_TENANT is sourced only from server-side .env, never from request input, and stamped on every log row
Session tokens previously leaked via WebSocket URLs (server logs) and localStorage (XSS) Server-generated tokens now live only in an HttpOnly; SameSite=lax cookie
Observability (usage/audit logging) must not slow down chat responses Logging is queued and drained asynchronously every 0.5 seconds, and failures never block the chat turn
Adding SSO without disrupting the existing static login UI SSO implemented as a purely additive POST /api/v1/auth/sso endpoint plus an iframe/postMessage pattern
HRMS’s own middleware encrypts payloads, which would block trusted internal calls A dedicated Api-Key header lets HRMS Agent bypass encryption as a trusted internal caller

Innovation Highlights

Business Value

Future Enhancements

Conclusion

HRMS Agent demonstrates how a conversational AI layer can be added on top of an existing, permission-sensitive enterprise system without duplicating its data or compromising its access controls. By combining a LangGraph-orchestrated tool-calling agent with strict, per-user permission gating, fail-closed authorization, mutation confirmation gates, and asynchronous audit logging, the architecture treats security and data integrity as first-class design constraints rather than afterthoughts. Its stateless request model, async I/O throughout, and environment-driven database routing give it a clear path to horizontal scale and multi-tenant deployment, while its closure-based tool pattern and domain-mixin structure keep it extensible as new HR domains are added. The result is a natural-language front door to HRMS that is both immediately useful for routine employee self-service and architecturally prepared for broader scope.
